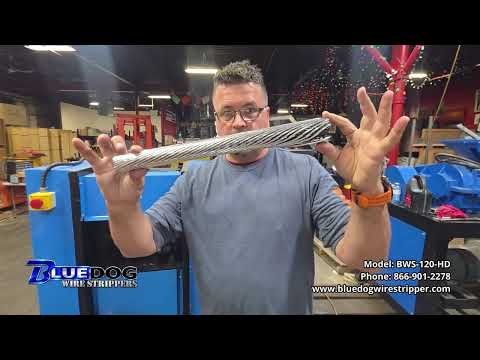

BWS-120-HD Industrial Wire Stripping Machine

The Bluedog BWS-120-HD Industrial Wire Stripping Machine is a heavy-duty, high-capacity cable stripper engineered for scrap yards, metal recyclers, cable processors, electrical contractors and industrial recycling operations.

Capable of processing everything from 14 GA wire up to massive 5-inch (120 mm) diameter cable, the BWS-120-HD features an innovative 3-Way Stripping Design that gives operators three different methods of stripping cable—all in one industrial machine.

Three Stripping Systems — One Heavy-Duty Machine

Different cables require different stripping methods. Instead of forcing every cable through the same blade configuration, the BWS-120-HD provides three dedicated stripping ports, allowing the operator to choose the best method for the cable being processed.

Left-Hand Port — Blade-Less Stripping

The left-hand port features a highly useful blade-less stripping system designed for Romex and light-gauge insulated wire.

This allows many smaller cables to be processed without conventional cutting blades, making it an extremely handy feature for recycling operations processing mixed loads of smaller electrical wire.

Middle Port — Heavy-Duty Dual-Blade Stripping

This is where the BWS-120-HD earns its Heavy Duty designation.

The middle stripping port is specifically designed for large, thick and difficult-to-strip industrial cable. It features cutting blades on both the top and bottom, allowing heavy cable jackets to be cut from two sides.

Need a deeper cut?

The feed rollers can be widened and adjusted, allowing the blades to penetrate deeper into thick insulation. This gives operators greater control when processing some of the toughest and most heavily insulated industrial cables.

Right-Hand Port — Large Rotary Blade Stripping

The right-hand port features a large round rotary cutting blade designed for processing standard insulated cable.

This provides an efficient stripping solution for many of the conventional copper and aluminum cables processed every day by scrap yards and cable recycling operations.

From 14 GA Wire to Massive 5-Inch Cable

One of the greatest advantages of the BWS-120-HD is its extraordinary cable processing range.

Minimum Wire Size: 14 GA
Maximum Cable Diameter: 5 Inches / 120 mm

That means a single industrial wire stripping machine can process smaller electrical wire and then turn around and tackle extremely large industrial cable approaching 5 inches in diameter.

For operations processing mixed loads of scrap cable, this versatility can be extremely valuable.

Heavy-Duty Adjustable Feed System

Cable doesn't come in one convenient size, shape or insulation thickness.

The BWS-120-HD incorporates a Heavy-Duty Adjustable Feed Guard designed to properly support a wide variety of cable sizes as they enter the machine.

For smaller-gauge wire, tube inserts provide additional guidance and support.

Combined with its three dedicated stripping systems, the adjustable feed design gives the BWS-120-HD the versatility to process an exceptionally broad range of cable.

Built for Serious Cable Recycling

The purpose of an industrial cable stripping machine isn't simply to cut insulation—it's to recover valuable copper and aluminum efficiently.

The BWS-120-HD is designed for professional operations processing everything from Romex and standard insulated copper wire to large, thick-jacketed industrial and utility cable.

Its combination of blade-less stripping, top-and-bottom dual-blade cutting and large rotary-blade stripping gives operators multiple ways to tackle the different cable entering their facility.

BWS-120-HD Specifications

Cable Processing Range: 14 GA to 5" Diameter Cable
Maximum Cable Diameter: 120 mm / 5"
Stripping Design: 3-Way Cable Stripping System
Blade-Less Port: Romex & Light-Gauge Wire
Heavy-Duty Port: Adjustable Feed Rollers with Top & Bottom Cutting Blades
Standard Cable Port: Large Rotary Cutting Blade
Feed System: Heavy-Duty Adjustable Feed Guard
Small Wire Processing: Tube Inserts
Motor: 5.5 HP
Power: 220V × 3 Phase × 60 Hz

One Machine. Three Stripping Systems. Massive Capability.

Whether you're processing 14 GA wire, Romex, standard copper cable, aluminum cable, heavy industrial cable or oversized cable up to 5 inches in diameter, the BWS-120-HD gives your operation the flexibility to get the job done with one heavy-duty industrial machine.

Three stripping systems. 14 GA to 5-inch cable capacity. Built for serious copper and aluminum recovery.

Not Sure If It Will Strip Your Cable? Send Us a Sample.
